1 Liter Water Plastic Bottle Filling Machine

Suzhou Ellison Packing Machinery CO., LTD

1 Liter Water Plastic Bottle Filling Machine

Brand Name : Ellison

Model Number : RCGF18-18-6

Certification : CE/ BV / ISO

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 10 sets per month

Delivery Time : 30 working days

Packaging Details : Wooden case or pallet package

Machine type : Plastic bottle filling machine

Filling liquid : Fruit juice

Capacity : 5000-6000BPH

Control manner : PLC and touch screen

Filling range : 330ml-2000ml

Bottle delivery : Air conveyor and belt conveyor

Bottle design : Freely design

Bottle shape : Round or Square or customize

Contact Now

RCGF18-18-6 Juice Plastic Bottle Filling Machine Capacity 6000BPH

Description

RCGF washing, filling ,capping 3 in 1 unit is a new type equipment, which is designed based on years' usual practice and adopt the advanced technology, and absorb many clients' views. It meets the client's requirement about filling different bottle size through one set. The suspension card bottleneck is adopted to make changing the bottle size more convenient.

Advantages

1) Suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

2) The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

3) The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.

4) Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.

5) Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this mineral water plant machine.

6) All parts that have direct contact with the water are made of high quality stainless steel. The critical electrical components are from famous international companies, such as Mitsubishi, Omron to name a few.


Technical specification

Model RCGF8-8-3 RCGF12-12-4 RCGF16-16-5 RCGF18-18-6 RCGF24-24-8

Capacity

500ml

2000BPH 3000-4000BPH 4000-6000BPH 6000-8000BPH 8000-12000BPH
Bottle type Round or square PET bottle (we can design freely)
Bottle diameter 50-115 mm
Bottle height 160-320 mm
Air consumption 0.3-0.7Mpa
Air pressure 5-8bar
Washing medium Aseptic water
Pressure of washing >0.06Mpa <=0.2Mpa
Power (kw) 3 4.4 4.4 4.4 5.2
Weight (kg) 3000 3200 4000 4500 6500


Electric configuration

Transducer Siemens
Touch screen Siemens
PLC Siemens
Stabilized voltage supply Schneider
Contactor Schneider
Approach switch Schneider
Air switch Schneider
Light sensor Autonics
Motor ABB
Option machines

Online cap washing system

Including: cap tunnel, stainless steel frame, washing head, two sets of washing pump and two sets of recycling tanks in stainless steel 304.

Cap elevator

Air consumption:0.3kg

Air blower: 0.25kw

Rotary: 2800rpm

Power:0.18kw

Rotary:1360rpm

Machine size: 600*600*1800mm

Weight:150kg


After-sales service

Shipping

Port of loading: Shanghai port

Port of discharge: Basing on the destination

Container: LCL or FCL

Installation and commissioning

We have technician to be overseas for machine setup and commissioning

Training The Buyer should arrange workers who work on the production line to work with the Seller’s technician
Preparation Sample bottle, cap, water and electricity shall be ready before technician arrives
Extra expense Client should be responsible for the round-way flight tickets, local transportation, local hotel and eating;

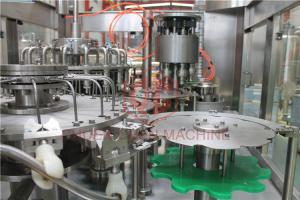

Detailed photo for ref


1 Liter Water Plastic Bottle Filling Machine1 Liter Water Plastic Bottle Filling Machine1 Liter Water Plastic Bottle Filling Machine
